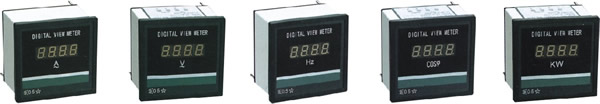

Function: The meters are applied in measuring and displaying the AC current.
Model: BS-DA96AC BS-DA72AC BS-DP3 BS-DA48 A
Dimension: 96×96mm 72×72mm 96×48mm 48×48mm
Feature：
1．Display：3 1/2 digits LED display（red or green）
2．Accuracy：(0.5%±1)
3．Auxiliary power：AC110V±10% 50/60Hz
4．Input signal：AC current
5．Measuring range：0-20A AC , For the current over 20A can use the current transformer.
6．Consumption：<3.2VA
7．Max Signal Consumption：<0.5VA
8．Operating Environment：temperature0℃～40℃ humidity：≤85％
9．Storage Environment: temperature -40C°~ +60 C° humidity：≤70％
10．Insulation Test: AC 2000V/min 11．Case: Non-combustile ABS plastic material is used for making external case. |
