APPLICATION

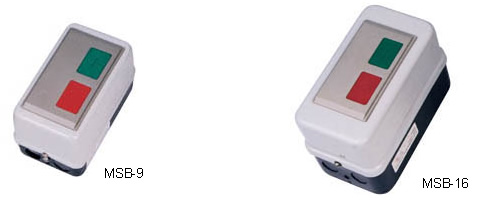

MSB series electromagnetic starters are used in a power line,AC 50Hz-60Hz to start,stop and convert motors,and protect motors from overload and phase failure.

SPECIFICATION

	T16	T45	T85	T105	T170	T250	T370	Control Power AC2/AC3/AC4 KW
								~220V	~38~380V 0V	~500V	~380V
MSB16	♦							2.2	4	4	4
MSB16	♦							3	5.5	5.5	5.5
MSB16	♦							4	7.5	7.5	7.5
MSB25		♦						6.5	11	11	11
MSB30		♦						9	15	15	15
MSB37		♦						10	18.5	18.5	18.5
MSB45		♦						13	22	22	22
MSB65			♦					16	33	40	40
MSB85			♦					20	45	50	50
