Type |
SSR |
|

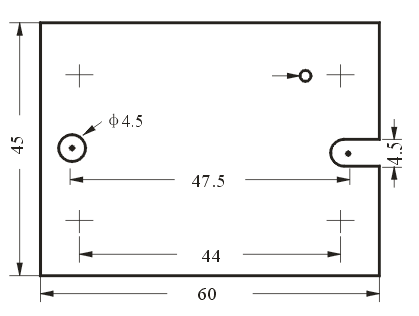

Dimension |
60x5x4
|
|
Function |
?SRMany kinds of input standards ?ith operation display
|
|
|
Insulation |
Photoelectrical coupler |
|
Load Voltage |
30-240VAC/90-480VAC/12-100VDC |
|
Load Current |
10-40A |
|
Leakage current
|
5mA 100VAC 5mA
10mA 200VAC 10mA |
|
VoRmVceo(V) |
1000 |
|
di/dt(A/us) |
200 |
|
dv/dt(v/us) |
400 |
|
I2t(A2S) |
25-3000(Bigger current,bigger consumption) |
|
Max.TJ(C) |
100 |
|
Input |
Input Voltage |
3-32VDC/90-250VAC |
|
Input Current |
< 40mA |
|
Off Voltage |
1VDC |
|
On Voltage |
3VDC |
|
Off time |
0.5ms DC/10msAC |
|
On time |
0.5ms DC/10msAC |
|
Dielectric stength |
50Hz,60S 2500VAC |
|
Ambient temperature |
-30℃-80℃(Under non-ice/dewfall condition) |
|
Coeffcient of safety of working current |
Dissipative load is 60% Inductive load is 40% |
