SPECIFICATION

TYPE		JQC-8F(T76)
DIMESIONS(mm)		22.5x16.8x11.1
CONTACT FORM		1Z,1H
CONTACT CAPACITY		20A/125VAC  10A/220VDC
CONTACT RESISTANCE		≤50mΩ
INSULATION TESISTANCE		≥500mΩ
DIELECTRIC STRENGTH	BETWEEN OPEN CONTACTS	1000VAC
	BETWIN COIL&CONTACT	1500VAC
COIL VOLTAGE	DC	6 to 48V
	AC	----
COIL POWER	DC	≤0.2W
	AC	----
PICK-UP		80% max
DROP-OUT		DC 15% mix
LIFE	ELECTRICAL	105 times
	MECHANICAL	107 times
OPERATING TEMPERATURE		-25℃ to +45℃
WEIGHT		≤11g
MOUNTING FORM		Printed-Circuit board

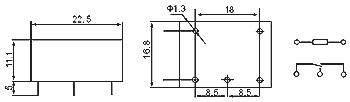

DIMENSIONS
