SPECIFICATION

TYPE		JZC-23F(4123)
DIMESIONS(mm)		20.8x16.1x16.8
CONTACT FORM		1Z,1H
CONTACT CAPACITY		0.5A/120VAC  1A/28VDC
CONTACT RESISTANCE		≤50mΩ
INSULATION TESISTANCE		≥100mΩ
DIELECTRIC STRENGTH	BETWEEN OPEN CONTACTS	500VAC
	BETWIN COIL&CONTACT	1500VAC
COIL VOLTAGE	DC	3to 48V
	AC	----
COIL POWER	DC	≤0.36W
	AC	----
PICK-UP		80% max
DROP-OUT		DC 15% mix
LIFE	ELECTRICAL	105 times
	MECHANICAL	106 times
OPERATING TEMPERATURE		-40℃ to +55℃
WEIGHT		≤9g
MOUNTING FORM		Printed-Circuit board

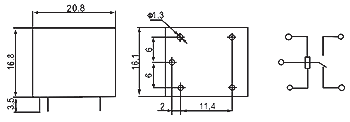

DIMENSION
