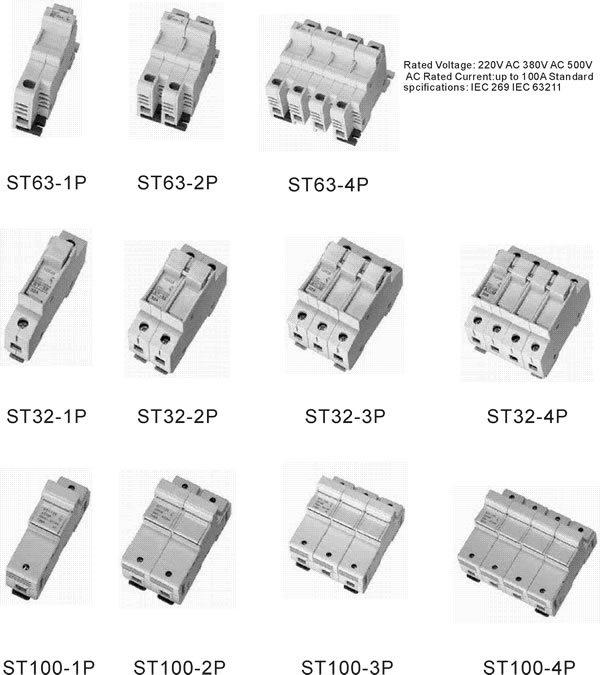

ST Type Fuse Holder

Specification

Size of fuse link	Rated current A	Number of poles	Order No.	Packing Units	Approx weigh/unit kg	Size of fuse link	Rated current A	Number of poles	Order No.	Packing Units	Approx weigh/unit kg
10X38	32	1 1+N	1800101 1800201	12 6	0.075 0.16	22X58	100	3 3+N	1802301 1802401	2 2	0.88 1.20
10X38	32	2	1800202	6	0.15	10X38	32	1+LED 1+N+LED	1800102 1800210	12 6	0.075 0.16
10X38	32	3 3+N	1800301 1800401	4 3	0.225 0.31	10X38	32	2+LED	1800211	6	0.15
14X51	63	1 1+N	1801101 1801201	6 3	0.18 0.37	10X38	32	3+LED 3+N+LED	1800302 1800402	4 3	0.225 0.31
14X51	63	2	1801202	3	0.36	14X51	63	1+LED 1+N+LED	1801102 1801210	6 3	0.18 0.37
14X51	63	3 3+N	1801301 1801401	2 2	0.54 0.73	14X51	63	2+LED	1801211	3	0.36
22X58	100	1 1+N	1802101 1802201	6 3	0.29 0.60	14X51	63	3+LED 3+N+LED	1801302 1801402	2 2	0.54 0.73
22X58	100	2	1802202	3	0.58
