SPECIFICATION

TYPE		AS406(CM6331)
DIMESIONS(mm)		28x28x25.3
CONTACT FORM		1Z,1H
CONTACT CAPACITY		22A 250VAC
CONTACT RESISTANCE		≤50mΩ
INSULATION TESISTANCE		≥1000mΩ
DIELECTRIC STRENGTH	BETWEEN OPEN CONTACTS	500VAC
	BETWIN COIL&CONTACT	500VAC
COIL VOLTAGE	DC	3 to 60V
	AC	----
COIL POWER	DC	≤0.9W
	AC	----
PICK-UP		80% max
DROP-OUT		DC 15% mix
LIFE	ELECTRICAL	105 times
	MECHANICAL	107 times
OPERATING TEMPERATURE		-40℃ to +70℃
WEIGHT		≤45g

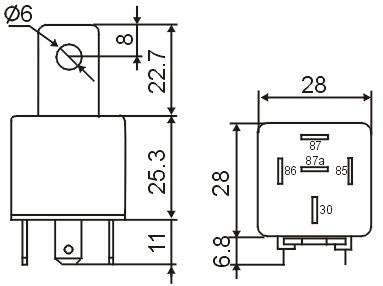

DIMENSION
