APPLICATION

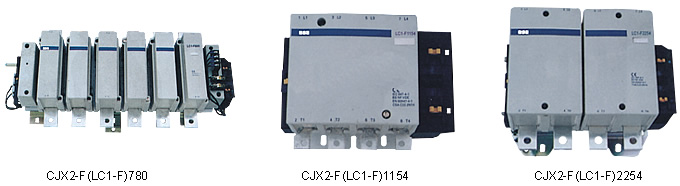

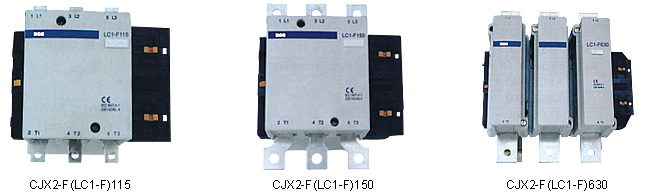

CJX2-F(LC1-F) series AC contactor is applicable in the circuits up to the rated voltage 1000V AC 50Hz or 60Hz,rated current 780A, for long distance breaking circuit and frequently starting or control the motor.It also can be used for the control of distribution circuits of rated current from 200A to 1600A.

SPECIFICATION

Type		LC1-F115	LC1-F150	LC1-F185	LC1-F225	LC1-F265	LC1-F330	LC1-F400	LC1-F500	LC1-F630	LC1-F780
Rated operation current(A)	AC-3	115	150	185	225	265	330	400	500	630	780
	AC-1	200	250	275	315	350	400	500	700	1000	16000
Standard power ratings of 3-phase motors AC-3(KW)	220V	30	40	55	63	75	100	110	147	200	200
	380V	55	75	90	110	132	160	200	250	335	400
	415V	59	80	100	110	140	180	200	280	375	425
	440V	59	80	100	110	140	200	250	295	400	450
	500V	75	90	110	129	160	200	257	335	400	450
	660V	80	100	110	129	160	200	280	335	450	475
	1000V	65	65	100	100	147	160	185	335	450	450

SPECIFICATION

MODEL	Rated operationg current AC-3(A)	Number of poles
LC1-F1154	115	4
LC1-F1504	150	4
LC1-F1854	185	4
LC1-F2254	225	4
LC1-F2654	265	4
LC1-F3304	330	4
LC1-F4004	400	4
LC1-F5004	500	4
LC1-F6304	630	4
LC1-F7804	780	4
