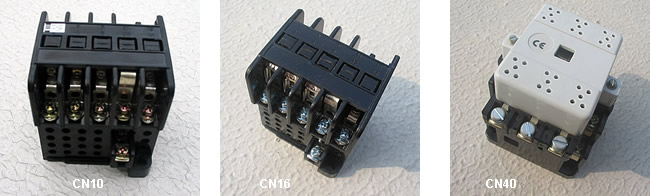

AC CONTACTOR  CN
  PRINT    CLOSE



CN10 Technical Data

Motor switching AC2 and AC3 duty Rated operational current le/AC1 45°C at Auxiliary contacts Type Weights
Rated operational current le at Rated outputs of three-phase motor at 50Hz for voltage
400V 230V 400V 690V 400V
A KW KW KW A NO NC   KG
10 2.5 4.5 7.5 23 1 1 CN10 0.425

CN16 Technical Data

Motor switching AC2 and AC3 duty Rated operational current le/AC1 45°C at Auxiliary contacts Type Weights
Rated operational current le at Rated outputs of three-phase motor at 50Hz for voltage
400V 230V 400V 690V 400V
A KW KW KW A NO NC   KG
16 4 7.5 9 30 1 1 CN16 0.44


CN40 Technical Data

Motor switching AC2 and AC3 duty Rated operational current le/AC1 45°C at Auxiliary contacts Type Weights
Rated operational current le at Rated outputs of three-phase motor at 50Hz for voltage
400V 230V 400V 690V 400V
A KW KW KW A NO NC   KG
40 2.5 4.5 7.5 45 2 2 CN40 0.935
