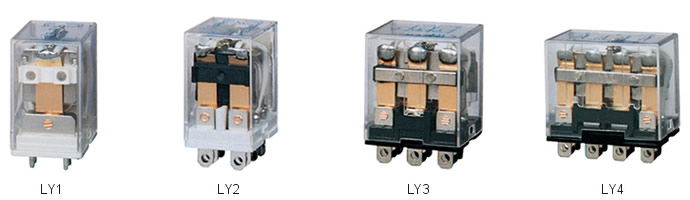

SPECIFICATION

TYPE		LY1	LY2	LY3	LY4
DIMESIONS(mm)		20.5X27X33.4	20.5X27X33.4	31X27.2X35.4	41X27.4X34.9
CONTACT FORM		1Z,1H	2Z,2H	3Z	4Z
CONTACT CAPACITY		16A 220VAC 16A 28VDC	10A 220VAC 10A 28VDC	10A 220VAC 10A 28VDC	10A 220VAC 10A 28VDC
CONTACT RESISTANCE		≤50mΩ
INSULATION TESISTANCE		≥100mΩ
DIELECTRIC STRENGTH	BETWEEN OPEN CONTACTS	1000VAC
	BETWIN COIL&CONTACT	1500VAC
COIL VOLTAGE	DC	6 to 220V
	AC	6 to 380V
COIL POWER	DC	≤0.9W	≤0.9W	≤1.4W	≤1.5W
	AC	≤1.2VA	≤1.2VA	≤2.0VA	≤2.5VA
PICK-UP		80% max
DROP-OUT		AC 30% mix DC 10% mix
LIFE	ELECTRICAL	105 times
	MECHANICAL	107 times
OPERATING TEMPERATURE		-40℃ to +55℃
WEIGHT		≤32g	≤34g	≤49g	≤69g
FITTED SOCKET		PTF08A PTF08A-E PT-08	PTF08A PTF08A-E PT-08	PT-11 PTF11A	PTF14A PTF14A-E PT-14
MOUNTING FORM		P.C.B, Flange,Outlet
REMARKS		with lamp:-N,FLANGE:-F with bottom:-S,PCB:-O

MOUNTING HOLES DIMENSION

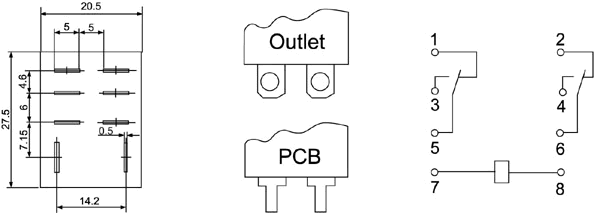

LY1

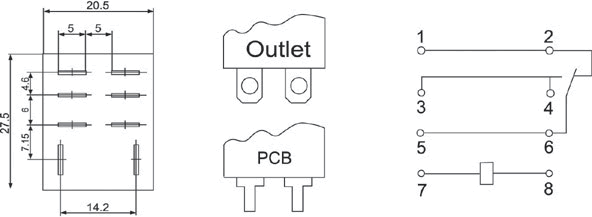

LY2

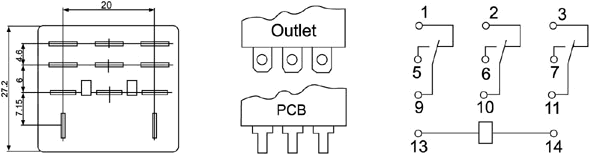

LY3

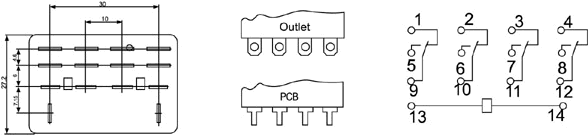

LY4
