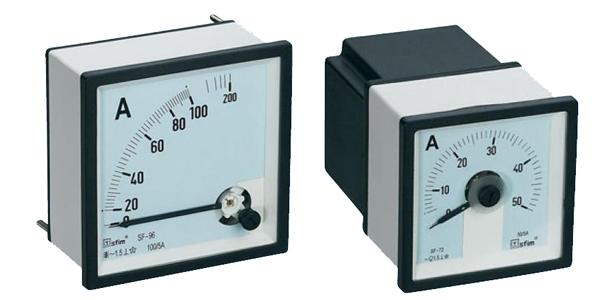

NAME：	AC Ammeter of BS~3 Series
Model：	90° BS-96 BS-72 BS-48 BS-144; 240° BS-96 BS-72
Spec：	1A 5A 10A 15A 20A 25A 30A 40A 50A 60A 75A 100A. There’re two standard methods for 10A-10KA use external current transformer with secondary current 1A and 5A.
Product description and technical parameters:	Model: 90° :BS-96 BS-72 BS-48 BS-144  240°:BS-96  BS-72 Accuracy: class 1.5 Specification: 1A 5A 10A 15A 20A 25A 30A 40A 50A 60A 75A 100A There’re two standard methods for 10A-10KA use external current transformer with secondary current 1A and 5A. Notes: For 60A 75A 100A meters,when these meters directly connected to circuit,their accuracy is class 2.5. BS-48 is class 2.5 for 20-60A Changeable scale:All scales with printing technique. The dial plate with different scale, which is at the same internal value,can be changeable.But the accuracy is unchangeable. Case: Non-combustile ABS plastic material is used for making external case Mounting: flush mounting with bracket, the maximum mounting depth is 43 mm.
