SPECIFICATION

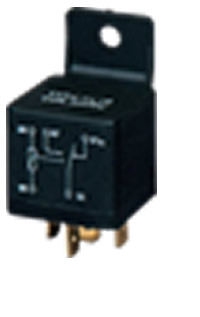

TYPE		RL15
CONTACT FORM		1Z,1H
CONTACT CAPACITY		30A 40A/30VDC 120VAC
CONTACT RESISTANCE		≤50mΩ
INSULATION TESISTANCE		≥1000mΩ
DIELECTRIC STRENGTH	BETWEEN OPEN CONTACTS	500VAC
	BETWIN COIL&CONTACT	1000VAC
COIL VOLTAGE	DC	3 to 48V
	AC	----
COIL POWER	DC	≤0.93W
	AC	----
PICK-UP		80% max
DROP-OUT		DC 15% mix
LIFE	ELECTRICAL	105 times
	MECHANICAL	107 times
OPERATING TEMPERATURE		-40℃ to +60℃
WEIGHT		≤35g

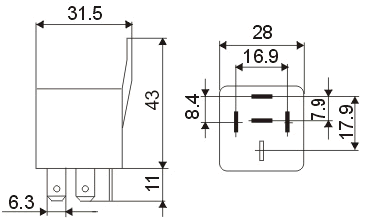

DIMENSION
