SPECIFICATION

TYPE		JQX-54FF
DIMESIONS(mm)		47.4x30.8x19.6
CONTACT FORM		1H,1Z,
CONTACT CAPACITY		30A/250VAC,30A/28VDC
CONTACT RESISTANCE		≤50mΩ
INSULATION TESISTANCE		≥100mΩ
DIELECTRIC STRENGTH	BETWEEN OPEN CONTACTS	1000VAC
	BETWIN COIL&CONTACT	1500VAC
COIL VOLTAGE	DC	6 to 48V
	AC	----
COIL POWER	DC	≤0.9W
	AC	----
PICK-UP		80% max
DROP-OUT		DC 15% mix
LIFE	ELECTRICAL	105 times
	MECHANICAL	107 times
OPERATING TEMPERATURE		-40℃ to +55℃
WEIGHT		≤37g
MOUNTING FORM		Outlet

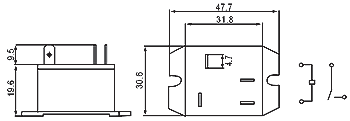

DIMENSION
