SPECIFICATION

TYPE		JQX-14FF 1Z	JQX-14FF 2Z
DIMESIONS(mm)		29X13X20.5	29X13X20.5
CONTACT FORM		1Z,1H,1D	2Z,2H,2D
CONTACT CAPACITY		10A 220VAC 10A 28VDC	5A 220VAC 5A 30VDC
CONTACT RESISTANCE		≤50mΩ
INSULATION TESISTANCE		≥1000mΩ
DIELECTRIC STRENGTH	BETWEEN OPEN CONTACTS	1000VAC
	BETWIN COIL&CONTACT	1500VAC
COIL VOLTAGE	DC	3 to 110V
	AC	6 to 220V
COIL POWER	DC	≤0.55W
	AC	≤1.2VA~2.5VA
PICK-UP		80% max
DROP-OUT		AC 30% mix DC 15% mix
LIFE	ELECTRICAL	105 times
	MECHANICAL	107 times
OPERATING TEMPERATURE		-40℃ to +65℃
WEIGHT		≤13g	≤13g
FITTED SOCKET		95.3	95.5
MOUNTING FORM		Outlet

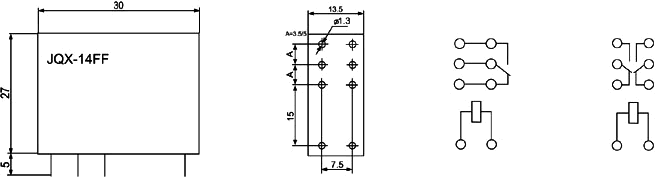

DIMENSION
