SPECIFICATION

TYPE		JRC-21F(4100)
DIMESIONS(mm)		15.5x11x11.5
CONTACT FORM		1Z
CONTACT CAPACITY		1A/125VAC  1A/30VDC
CONTACT RESISTANCE		≤50mΩ
INSULATION TESISTANCE		≥100mΩ
DIELECTRIC STRENGTH	BETWEEN OPEN CONTACTS	500VAC
	BETWIN COIL&CONTACT	1000VAC
COIL VOLTAGE	DC	3 to 24V
	AC	----
COIL POWER	DC	≤0.2W
	AC	----
PICK-UP		80% max
DROP-OUT		DC 15% mix
LIFE	ELECTRICAL	105 times
	MECHANICAL	107 times
OPERATING TEMPERATURE		-30℃ to +70℃
WEIGHT		≤4g
MOUNTING FORM		Printed-Circuit board

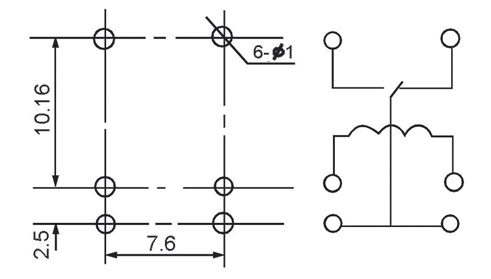

DIMENSION
