SPECIFICATION

TYPE		JZC-6F(4098)
DIMESIONS(mm)		18.5x10.5x12
CONTACT FORM		2Z,2H
CONTACT CAPACITY		0.5A/120VAC  1A/28VDC
CONTACT RESISTANCE		≤100mΩ
INSULATION TESISTANCE		≥100mΩ
DIELECTRIC STRENGTH	BETWEEN OPEN CONTACTS	1000VAC
	BETWIN COIL&CONTACT	1500VAC
COIL VOLTAGE	DC	3 to 48V
	AC	----
COIL POWER	DC	≤0.45W
	AC	----
PICK-UP		80% max
DROP-OUT		DC 15% mix
LIFE	ELECTRICAL	105 times
	MECHANICAL	107 times
OPERATING TEMPERATURE		-40℃ to +70℃
WEIGHT		≤9g
MOUNTING FORM		Printed-Circuit board

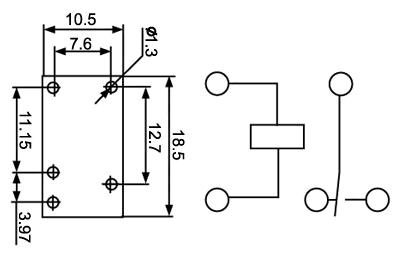

DIMENSION
