APPLICATION

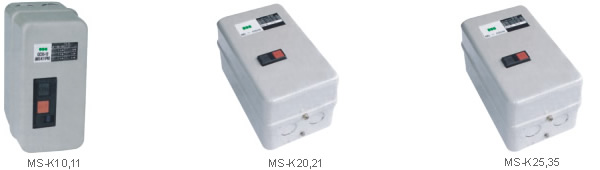

QCX5 (MS-K) series magnetic starter is suitable for circuit of AC 50Hz and coltage upto 660V, to start,stop and switch motor and protect it against overload, when thermal overload relay trips, QCX5 enclosed type can reset easily with pressing OFF button on the enclosure.

SPECIFICATION

Type	Rated operating current 380V AC-3(A)	Rated operating power AC-3 KW
		220V	380V	660V
QCX5-9 (MS-K10)	9	2.5	4	4
QCX5-12 (MS-K11)	12	3.5	5.5	5.5
QCX5-22 (MS-K20)	22	5.5	11	7.5
QCX5-22 (MS-K21)	22	5.5	11	7.5
QCX5-30 (MS-K25)	30	7.5	15	11
QCX5-40 (MS-K35)	40	11	18.5	15
