SPECIFICATION

TYPE		JQX-58F
DIMESIONS(mm)		68x48x49
CONTACT FORM		1Z,1H,1D
CONTACT CAPACITY		60A/250VAC  28VDC
CONTACT RESISTANCE		≤30mΩ
INSULATION TESISTANCE		≥1000mΩ
DIELECTRIC STRENGTH	BETWEEN OPEN CONTACTS	1200VAC
	BETWIN COIL&CONTACT	2500VAC
COIL VOLTAGE	DC	6 to 110V
	AC	12 to240v
COIL POWER	DC	≤2W
	AC	≤2.5VA
PICK-UP		80% max
DROP-OUT		AC 30% mix  DC 15% mix
LIFE	ELECTRICAL	105 times
	MECHANICAL	107 times
OPERATING TEMPERATURE		-40℃ to +70℃
WEIGHT		≤191g
MOUNTING FORM		Screw Mounting

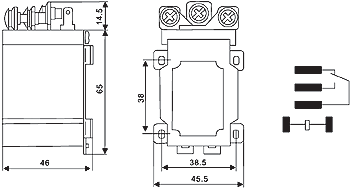

DIMENSION
