SPECIFICATION

TYPE		JQX-37F
DIMESIONS(mm)		35.2x32.2x24
CONTACT FORM		1H
CONTACT CAPACITY		30A 250VAC /2HP 250VAC
CONTACT RESISTANCE		≤30mΩ
INSULATION TESISTANCE		≥100mΩ
DIELECTRIC STRENGTH	BETWEEN OPEN CONTACTS	1200VAC
	BETWIN COIL&CONTACT	4000VAC
COIL VOLTAGE	DC	3 to 60V
	AC	----
COIL POWER	DC	≤1.2W
	AC	----
PICK-UP		80% max
DROP-OUT		DC 15% mix
LIFE	ELECTRICAL	105 times
	MECHANICAL	106 times
OPERATING TEMPERATURE		-40℃ to +70℃
WEIGHT		≤50g
MOUNTING FORM		Outlet

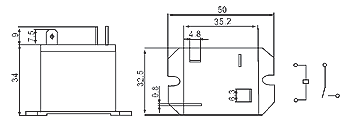

DIMENSION
