RESIDUAL CURRENT CIRCUIT BREAKER LDAB1L(ABB.GS250S)
PRINT CLOSE
RESIDUAL CURRENT CIRCUIT BREAKER
----------------
ID F360 NFIN FIN MYL L7 F7 5SM BV-D F1,C-F PG230,PG430 AJR BP LDAB1L(ABB.GS250S)
ID F360 NFIN FIN MYL L7 F7 5SM BV-D F1,C-F PG230,PG430 AJR BP LDAB1L(ABB.GS250S)
ID F360 NFIN FIN MYL L7 F7 5SM BV-D F1,C-F PG230,PG430 AJR BP LDAB1L(ABB.GS250S)
APPLICATION
LDAB1L(GS250S) series leakage circuit brekaer is the leakage operation circuit breaker with overcurrent protection. It's mainly used in AC 50Hz,single phase rated voltage 230V, three phase rated voltage 400V. This product comply with IEC61009.
SPECIFICATION
Frame grade Inm(A)
Pole(P)
Litmusless value
Rated current
Rated short-circuit breaking capacity
Rated leakage operating current(mA)
Rated leakage non-operating current(mA)
Voltage(V)
Breaking capacity(A)
32
1
N
6,10,16
220
6000
30
15
2
30
15
3
380
30
15
4
30
15
63
1
N
40,50
220
4000
30
15
2
30
15
3
380
50
25
4
100
50

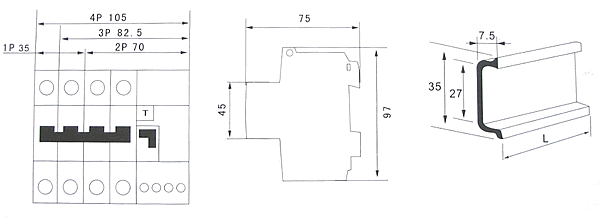

DIMENSION
