SPECIFICATION

TYPE		G7L-2P-TUBJ
DIMESIONS(mm)		68.5x33.5x47
CONTACT FORM		1H,2H
CONTACT CAPACITY		20A/220VAC
CONTACT RESISTANCE		≤50mΩ
INSULATION TESISTANCE		≥100mΩ
DIELECTRIC STRENGTH	BETWEEN OPEN CONTACTS	1500VAC
	BETWIN COIL&CONTACT	2500VAC
COIL VOLTAGE	DC	6 to 24V
	AC	6 to 220v
COIL POWER	DC	≤2.0W
	AC	----
PICK-UP		80% max
DROP-OUT		AC 30% mix  DC 15% mix
LIFE	ELECTRICAL	105 times
	MECHANICAL	106 times
OPERATING TEMPERATURE		-40℃ to +70℃
WEIGHT		≤100g
MOUNTING FORM		Outlet

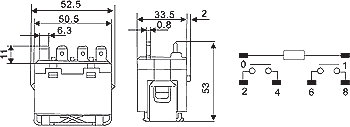

DIMENSION
