SPECIFICATION

TYPE		JQX-30F
DIMESIONS(mm)		43x35.5x48
CONTACT FORM		2H,2Z,2D
CONTACT CAPACITY		30A 40A/250VAC  28VDC
CONTACT RESISTANCE		≤30mΩ
INSULATION TESISTANCE		≥1000mΩ
DIELECTRIC STRENGTH	BETWEEN OPEN CONTACTS	1200VAC
	BETWIN COIL&CONTACT	2500VAC
COIL VOLTAGE	DC	5 to 110V
	AC	6 to240v
COIL POWER	DC	≤1.5W
	AC	≤2.5W
PICK-UP		80% max
DROP-OUT		AC 30% mix  DC 15% mix
LIFE	ELECTRICAL	105 times
	MECHANICAL	107 times
OPERATING TEMPERATURE		-40℃ to +70℃
WEIGHT		≤71g
MOUNTING FORM		Flange,Outlet

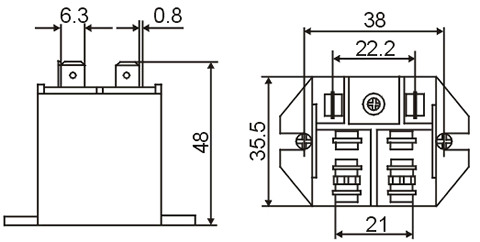

DIMENSION
