APPLICATION

This product is suitable for using in circuit the rated voltage up to AC 660V or 440V and current 0.1 to 16A. It can be used for protection of overload and short circuit of 3phase squirrel-cage motors, and starters of motors as well at full voltage. It is suitable to use to protect the motor with under voltage trip. It can also be used in operating AC single phase load and DC load. Itcan monitor the fuse of switch disconnector to act as protection of phase failure.This product includes basic type switch and 26 accessories with purposes of expanding usage. It complies with standards of IEC157-1.

SPECIFICATION

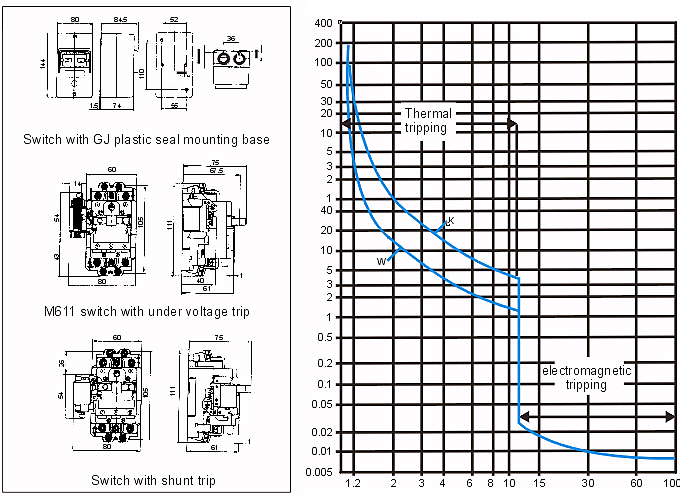

DIMENSIONS/CHARACTERISTIC CURVE
