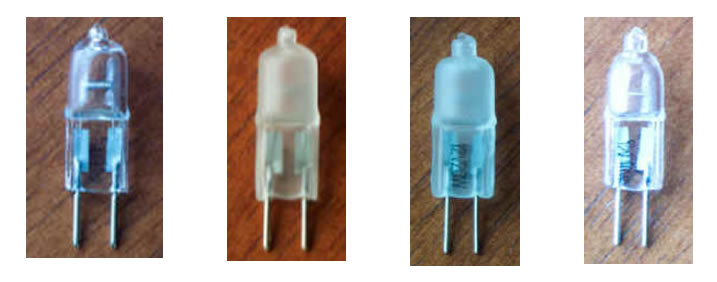

LIGHTS&LAMPS  Low Voltage halogen lamps
  PRINT    CLOSE

Application:
Furniture luminaries, desktop luminaries, chandeliers and unshielded luminaries and used a various safety lighting purpose.

Specification:
Low pressure design in accordance with IEC598
May still be used in free burning applications without a shield on the luminaries.
Axial filament is good for focusing.
Clear bulb for high light output, Color temperature is approx 3000K.Long life is up to 10000Hrs.
May still be used in free burning applications withouta shield on the luminaries.
Axial filament is good for focusing. Clear bulb for high light output,Color temperature is approx 3000K. Long life is up to 10000Hrs.

Technical data:
Type
Specification
Watt
Voltage
AV.life(Hrs)
lm
Base
JC-12V5
5
12
1500
45
G4
JC-12V10
10
12
1500/2500
120
G4/ GY6.35
JC-12V20
20
12
1500/2500
290
G4 /GY6.35
JC-12V35
35
12
1500/2500
560
G4 /GY6.35
JC-12V50
50
12
2500
900
GY6.35
JC-12V75
75
12
2500
1380
GY6.35
JC-12V100
100
12
2500
1850
GY6.35
JC-6V10
10
6
2500
120
G4
JC-6V20
20
6
2500
290
G4
JC-6V35
35
6
2500
560
GY6.35
JC-24V20
20
24
2500
290
G4
JC-24V35
35
24
2500
560
GY6.35
JC-24V50
50
24
2500
900
GY6.35
JC-24V75
75
24
2000
1380
GY6.35
JC-24V100
100
24
2000
1850
GY6.35
