RK5 Filled Seal Pipe Type Delay Action Fuse

Specification

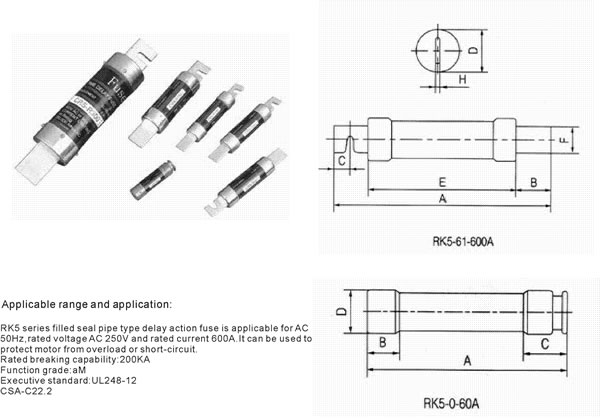

Type	Rated voltage(v)	Rated current(A)	Dimenisions(mm)
			A	B					C	D	E	F	H
RK5	250V	10.15.20.25.30	50.8	12.7					17	Φ 14.3	-	-	-
		35.40.45.50.60	76.2	16					21	Φ 20.6	-	-	-
		70.80.90.100	149.2	25.4					12.7	Φ 27.2	85.7
		110.125.150.200	181	34.9					17.5	Φ 40.2	104
		250.300.400	219.1	47.6					23.8	Φ 54	118
		450.500.600	263.5	57.2					28.6	Φ 66	132
	600V	10.15.20.25.30	127	12.7					17	Φ 20.6	-	-	-
		35.40.45.50.60	139.7	16					21	Φ 27	-	-	-
		70.80.90.100	200	25.4					12.7	Φ 33	136	19.1	3.18
		110.125.150.200	244.5	34.9					17.5	Φ 46.5	156	28.6	4.8
		250.300.400	295.3	47.6					23.8	Φ 65.9	181	41.3	6.35
		450.500.600	339.7	57.2					28.6	Φ 80	208	50.8	6.35
