SWITCH  SGLR
  PRINT    CLOSE

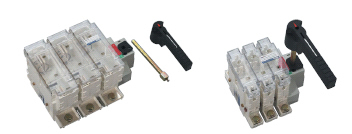

∈  SGLR Series fuse group of isolation switch (hereinafter short for switch) is multi-pole and manual operation switch, whose housing is made of glass fiber reinforced unsaturation polyester, it has merits of high dielectric property, guard capacity and reliable operation.
∈  The operation mechanism, it is accelerate machanism of spring energy storage, instantaneous release, it is also a mechanism that is instaneous making and breaking multi- breakpoing contact. It is no related with the speed of operation handle, thus, it extremely improves each electric performance and mechanical performance.
∈  Fuse group of isolation switch can make sure making and breaking circuit with load, and it has reliable over current or short-circuit breaking protection.
∈  Obviously saw the breaking state.
∈  With strong hot and humidity proofing.
∈  Because the switch owns the merits of graceful appearance, novel, simple, small volume and complete function, it is best selection among the same products.

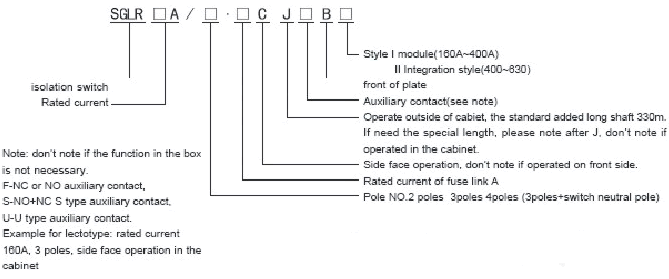

Model description

Mated wit the spec of fuse link

Rated current of fuse group of isolation swtich A
Rated current of fuse link A
Size of fuse link
63
10, 20, 30, 40, 50, 63
00C
160
63, 80, 100, 125, 160
00
250
160
0
200, 250
1
400
300, 315, 400
2
630
400, 500, 630
3
