Fuse Holder

Application

RG Series Fuse Holders are formed with the fuse suppporter (fuse base) and the fuse carrier (handle). They are designed for working at a rated voltage up to 660VAC,50/60Hz,the rated thermal current is up to 100A. The products comply with IEC269 standard.They are widely used for protection against overload and short circuit in power distribution systems,and can also be used for power main disconnecting.

Specification

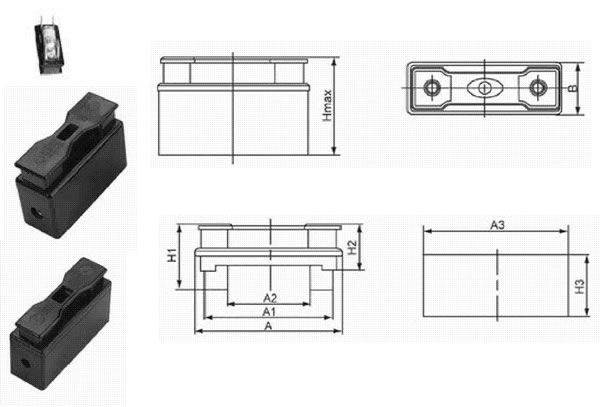

MODEL	DIMENSIONS (mm)
	A	A1	A2	A3	B	H	H1	H2					H3
RG32	68	57	38	68	26	49	35	19					33
RG63	105.5	92	60	104.5	35	67	46	32					43.7
RG100	129	114	72	129	50	94	75	405					62
