SPECIFICATION

Model	Rated current(AC-3)	Rated standard power of 3-phase motors 50/60Hz AC-3						Max. Rated operating voltage	Instantaneous auxiliary contacts
		220V 230V	380V 400V	415V	440V	500V	660V
	A	KW	KW	KW	KW	KW	KW	V

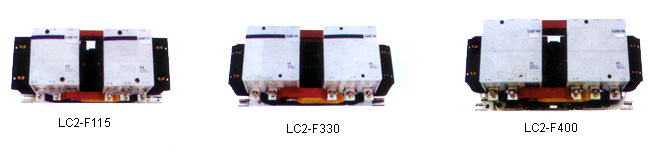

LC2-F115	115	30	55	60	60	75	80	660	NO+NC
LC2-F150	150	40	75	80	80	90	100	660	NO+NC
LC2-F185	185	55	90	100	100	110	110	660	NO+NC
LC2-F225	225	63	110	110	110	129	129	660	NO+NC
LC2-F265	265	75	132	140	110	160	160	660	NO+NC
LC2-F330	330	100	160	180	140	200	200	660	NO+NC
LC2-F400	400	110	200	220	220	257	280	660	NO+NC
LC2-F500	500	147	250	280	295	355	355	660	NO+NC
LC2-F630	630	200	335	375	375	400	450	660	NO+NC

SPECIFICATION

MODEL	Rated operationg current AC-3(A)	Number of poles

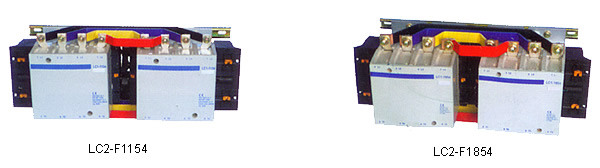

LC2-F1154	115	4
LC2-F1504	150	4
LC2-F1854	185	4
LC2-F2254	225	4
LC2-F2654	265	4
LC2-F3304	330	4
LC2-F4004	400	4
LC2-F5004	500	4
LC2-F6304	630	4
