SPECIFICATION

TYPE		JQC-3F(4100)
DIMESIONS(mm)		19.2x15.5x15.4
CONTACT FORM		1Z,1H
CONTACT CAPACITY		1A/125VAC  1A/28VDC
CONTACT RESISTANCE		≤50mΩ
INSULATION TESISTANCE		≥100mΩ
DIELECTRIC STRENGTH	BETWEEN OPEN CONTACTS	750VAC
	BETWIN COIL&CONTACT	1200VAC
COIL VOLTAGE	DC	3 to 48V
	AC	----
COIL POWER	DC	≤0.2W
	AC	----
PICK-UP		80% max
DROP-OUT		DC 15% mix
LIFE	ELECTRICAL	105 times
	MECHANICAL	107 times
OPERATING TEMPERATURE		-55℃ to +85℃
WEIGHT		≤12g
MOUNTING FORM		Printed-Circuit board

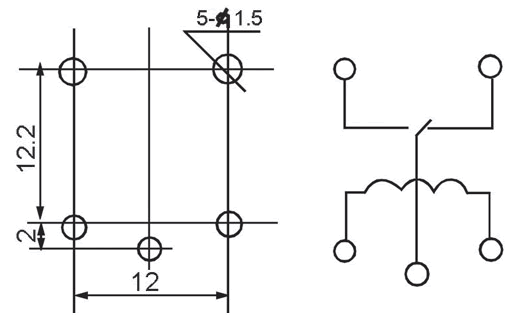

DIMENSION
