SPECIFICATION

TYPE		JQX-62F 1Z
DIMESIONS(mm)		61.7x63.5x56.5
CONTACT FORM		1Z
CONTACT CAPACITY		80A/250VAC  30VDC
CONTACT RESISTANCE		≤50mΩ
INSULATION TESISTANCE		≥1000mΩ
DIELECTRIC STRENGTH	BETWEEN OPEN CONTACTS	1500VAC
	BETWIN COIL&CONTACT	2500VAC
COIL VOLTAGE	DC	6 to 220V
	AC	6 to 380v
COIL POWER	DC	≤3.3W
	AC	≤5.0VA
PICK-UP		80% max
DROP-OUT		AC 30% mix  DC 15% mix
LIFE	ELECTRICAL	105 times
	MECHANICAL	106 times
OPERATING TEMPERATURE		-40℃ to +40℃
WEIGHT		≤210g
MOUNTING FORM		Screw Mounting

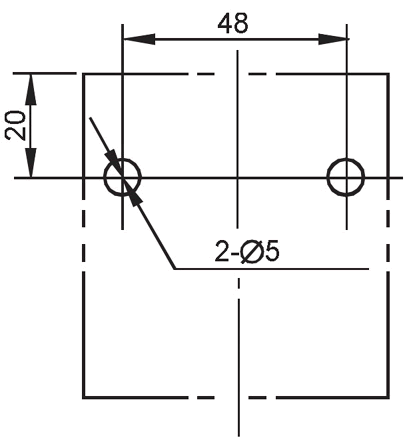

DIMENSION
