SPECIFICATION

TYPE		JQX-38F
DIMESIONS(mm)		50.5x42.2x55.3
CONTACT FORM		1Z,2Z,3Z
CONTACT CAPACITY		30A 40A/250VAC  30VDC
CONTACT RESISTANCE		≤30mΩ
INSULATION TESISTANCE		≥1000mΩ
DIELECTRIC STRENGTH	BETWEEN OPEN CONTACTS	1200VAC
	BETWIN COIL&CONTACT	2500VAC
COIL VOLTAGE	DC	5 to 110V
	AC	6 to240v
COIL POWER	DC	≤2W-2.5W
	AC	≤4.5VA
PICK-UP		80% max
DROP-OUT		AC 30% mix  DC 15% mix
LIFE	ELECTRICAL	105 times
	MECHANICAL	107 times
OPERATING TEMPERATURE		-40℃ to +70℃
WEIGHT		≤115g
MOUNTING FORM		Outlet

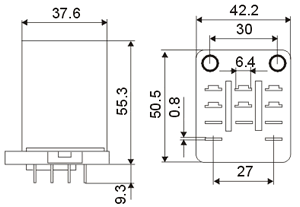

DIMENSION
