APPLICATION

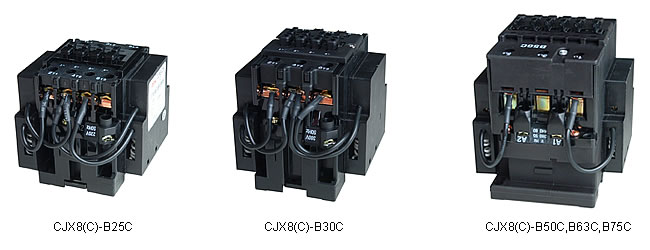

The contactor of CJX8C type switched capacitor is the special contactor of on-off capacitor is special contactor widely used for low-voltage on-off capacitor and for compensated equipments that none-power,it fit on electrical system that alternating frequency 50Hz,rated working voltage upon 380V,on-off capacitor upon 50kvar,improving to power factor.The contactor of CJX8C type switched capacitor is the special contactor of on-off capactitor based on of the B series alternating conactor,it is produced recently by our factory,there are five types,it's structure is different from the twokinds before.The resistance switched circuit is at two sides of the main circuit with freeing electric set,when the capacitor drops out of the circuit,the freeing electric set connects with the capacitor so as to reduce the remained voltage in capacitor below 50v in 30s,and the user saves the freeing electric set so that reducing cost,The main feeler designed reasonably,works alone and relibly,The resistance switched circuit into two line.

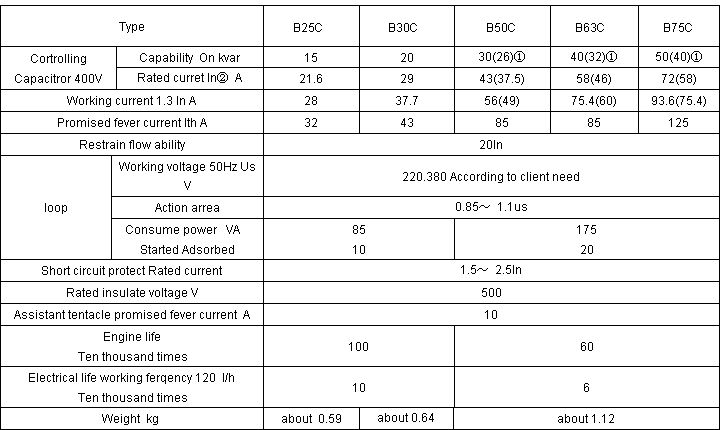

SPECIFICATION
