SPECIFICATION

TYPE		JZC-33F
DIMESIONS(mm)		20.5x10.5x16
CONTACT FORM		1Z,1H
CONTACT CAPACITY		5A/250VAC  5A/28VDC
CONTACT RESISTANCE		≤50mΩ
INSULATION TESISTANCE		≥100mΩ
DIELECTRIC STRENGTH	BETWEEN OPEN CONTACTS	750VAC
	BETWIN COIL&CONTACT	1500VAC
COIL VOLTAGE	DC	3 to 48V
	AC	----
COIL POWER	DC	≤0.45W
	AC	----
PICK-UP		80% max
DROP-OUT		DC 15% mix
LIFE	ELECTRICAL	105 times
	MECHANICAL	107 times
OPERATING TEMPERATURE		-30℃ to +70℃
WEIGHT		≤9g
MOUNTING FORM		Printed-Circuit board

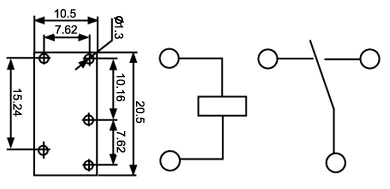

DIMENSION
