APPLICATION

GMC series AC contactor is suitable for using in the circuit up to the rated voltage 660V AC 50HZ or 60HZ, rated current up to 95A, for making, breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, and star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The contactor is produced according to IEC947-2, VDE0660 & BS5452.

SPECIFICATION

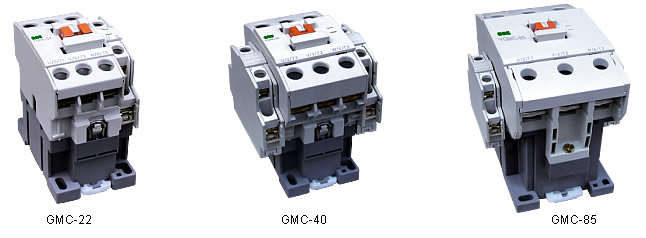

Type GMC-9 GMC-12 GMC-18 GMC-22 GMC-32 IEC-60947 AC 1 duty 20A 20A 25A 32A 50A AC3 duty 200-240V 2.5KW11A 3.5KW13A 4.5KW18A 5.5KW22A 7.5KW32A 380-440V 4KW9A 5.5KW12A 7.5KW18A 11KW22A 15KW32A 500-550V 4KW7A 7.5KW12A 7.5KW13A 15KW22A 18.5KW28A 690V 4KW5A 7.5KW9A 9.5KW9A 15KW18A 18.5KW21A UL Continuous current (Ith) 20A 25A 30A 32A 45A AC motor Single phase 115V 0.5HP 0.5HP 1HP 2HP 2HP 230V 1HP 2HP 3HP 3HP 5HP Three phase 200V 2HP 3HP 5HP 7HP 7.5HP 230V 3HP 3HP 5HP 7.5HP 10HP 460V 2HP 7.5HP 10HP 10HP 20HP 575V 5HP 10HP 15HP 15HP 20HP Life time (unit:10,000 time) Electrical 250 250 250 250 200 Mechanical 2500 2500 2500 2500 1500 Aux.contact 1NO1NC 1NO1NC 1NO1NC 1NO1NC 1NO1NC 2NO2N

Type GMC-40 GMC-50 GMC-65 GMC-75 GMC-85 IEC-60947 AC 1 duty 60A 80A 100A 110A 135A AC3 duty 200-240V 11KW40A 15KW55A 18.5KW65A 22KW75A 25KW85A 380-440V 18.5KW40A 22KW50A 30KW65A 37KW75A 45KW85A 500-550V 22KW32A 30KW43A 37KW60A 45KW64A 45KW75A 690V 22KW25A 30KW33A 37KW33A 45KW47A 45KW52A UL Continuous current (Ith) 50A 70A 80A 90A 100A AC motor Single phase 115V 3HP 3HP 5HP 5HP 7.5HP 230V 5HP 7.5HP 10HP 15HP 15HP Three phase 200V 10HP 10HP 15HP 20HP 25HP 230V 10HP 15HP 20HP 25HP 30HP 460V 25HP 30HP 40HP 50HP 50HP 575V 25HP 30HP 40HP 50HP 50HP Life time (unit:10,000 time) Electrical 200 200 200 200 200 Mechanical 1500 1000 1000 1000 1000 Aux.contact standard 2NO2NC 2NO2NC 2NO2NC 2NO2NC 2NO2NC
