SPECIFICATION

TYPE		JQX-115F
CONTACT FORM		1Z,1H,1D
CONTACT CAPACITY		16A/250VAC  30VDC
CONTACT RESISTANCE		≤50mΩ
INSULATION TESISTANCE		≥100mΩ
DIELECTRIC STRENGTH	BETWEEN OPEN CONTACTS	750VAC
	BETWIN COIL&CONTACT	1500VAC
COIL VOLTAGE	DC	3 to 48V
	AC	----
COIL POWER	DC	≤0.4W-0.5W
	AC	----
PICK-UP		80% max
DROP-OUT		DC 15% mix
LIFE	ELECTRICAL	105 times
	MECHANICAL	107 times
OPERATING TEMPERATURE		-40℃ to +70℃
WEIGHT		≤11g
MOUNTING FORM		Printed-Circuit board

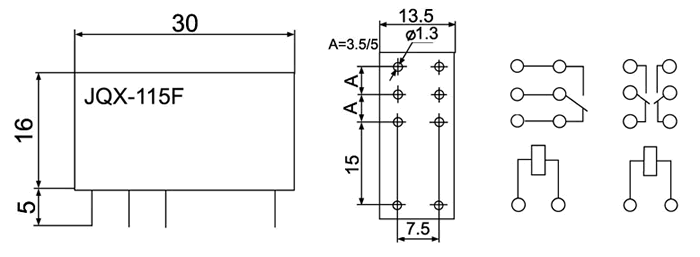

DIMENSION
