SPECIFICATION

TYPE		JRC-19F
DIMESIONS(mm)		21x10x12
CONTACT FORM		2Z	2H
CONTACT CAPACITY		0.5A/120VAC  1A/28VDC
CONTACT RESISTANCE		≤50mΩ
INSULATION TESISTANCE		≥100mΩ
DIELECTRIC STRENGTH	BETWEEN OPEN CONTACTS	500VAC
	BETWIN COIL&CONTACT	1000VAC
COIL VOLTAGE	DC	3 to 48V
	AC	----
COIL POWER	DC	≤0.2W
	AC	----
PICK-UP		80% max
DROP-OUT		DC 15% mix
LIFE	ELECTRICAL	105 times
	MECHANICAL	107 times
OPERATING TEMPERATURE		-25℃ to +55℃
WEIGHT		≤6g
MOUNTING FORM		Printed-Circuit board

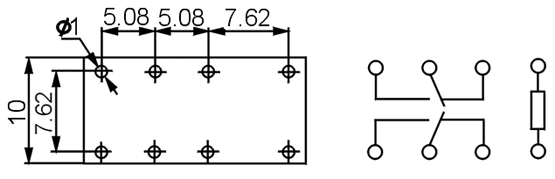

DIMENSION
