Application

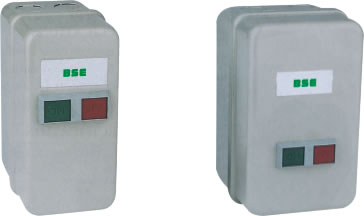

MT-CLPB magnetic starter is suitable for circuit of AC 50Hz or 60Hz, rated voltage up to 500V, rated control power up to 15KW, to directly start and stop AC motor and protect squirrel-cage motor against overload and phase failure, beside, it can protect circuit against loss of voltage.

Specifications

Type of box	Suitable magnetic contactor	Suitable thermal over current relay	Rated 3f of motor
			Rated capacity KW (HP) ClassAC3			Rated capacity KW (HP) ClassAC3
			200~220V	380~440V	500~550V	200~220V	380~440V	500~550V
MT-11CL(PB)	M-11CL	TR-12	3(4)	4(5.5)	4(5.5)	12	9	7
MT-16CL(PB)	M-16CL	TR-20	3.7(5)	5.5(7.5)	5.5(7.5)	16	12	10
MT-21CL(PB)	M-21CL	TR-20	5.5(7.5)	11(15)	11(15)	24	21	17
MT-35CL(PB)	M-35CL	TR-20	9(12.5)	15(20)	15(20)	35	27	22
