APPLICATION

The contactor is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60Hz, rated current 630A, for making and breaking and controlling the motor. After combined with the mechanical interlocking device, it becomes 3TD series convertible contactor for controlling, starting, breaking and reversing of the motor.The products comply with IEC947& VDE0660.

SPECIFICATION



Type	Rated thermal current (A)	Rated operating current at 380V(A)	Rated operating current at 660V(A)	The power of controlled motor(KW)		Type of auxliliary contact
				380V	660V

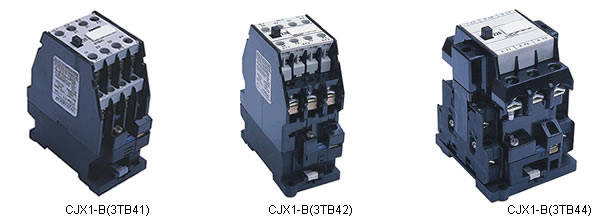

3TB40	22	9	7.2	4	5.5	1NO 1NC 1NO+1NC 2NO+2NC
3TB41	22	12	9.5	5.5	7.5
3TB42	35	16	13.5	7.5	11
3TB43	35	22	13.5	11	11
3TB44	35	32	18	15	15	2NC+2NO
