SPECIFICATION

TYPE		JQX-16F(T91)
DIMESIONS(mm)		32.5x27.5x28
CONTACT FORM		1H,1Z,1D
CONTACT CAPACITY		30A  20A/220VAC,28VDC
CONTACT RESISTANCE		≤50mΩ
INSULATION TESISTANCE		≥500mΩ
DIELECTRIC STRENGTH	BETWEEN OPEN CONTACTS	1000VAC
	BETWIN COIL&CONTACT	1500VAC
COIL VOLTAGE	DC	6to60V
	AC	----
COIL POWER	DC	≤0.93W
	AC	----
PICK-UP		80% max
DROP-OUT		DC 15% mix
LIFE	ELECTRICAL	105 times
	MECHANICAL	107 times
OPERATING TEMPERATURE		-40℃ to +70℃
WEIGHT		≤31g
MOUNTING FORM		Printed-Circuit board

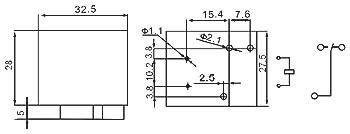

DIMENSION
