SPECIFICATION

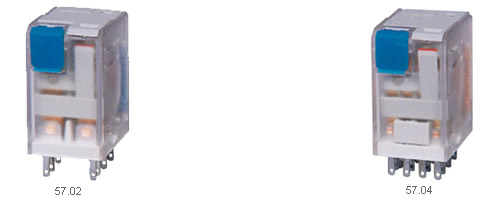

TYPE		57.02	57.04
DIMESIONS(mm)		20.5X27.5X34	20.5X27.5X34
CONTACT FORM		2Z	4Z
CONTACT CAPACITY		5A,7A/220VAC 30VDC	3A,5A/220VAC 30VDC
CONTACT RESISTANCE		≤50mΩ
INSULATION TESISTANCE		≥500mΩ
DIELECTRIC STRENGTH	BETWEEN OPEN CONTACTS	1000VAC
	BETWIN COIL&CONTACT	1500VAC
COIL VOLTAGE	DC	5 to 110V
	AC	6 to 240V
COIL POWER	DC	≤0.9W
	AC	≤1.2VA
PICK-UP		80% max
DROP-OUT		AC 30% mix DC 15% mix
LIFE	ELECTRICAL	105 times
	MECHANICAL	107 times
OPERATING TEMPERATURE		-40℃ to +55℃
WEIGHT		≤38g
FITTED SOCKET		RT703	RT704
MOUNTING FORM		PCB, SOCKET

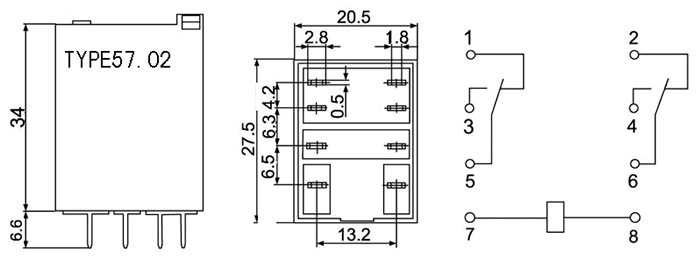

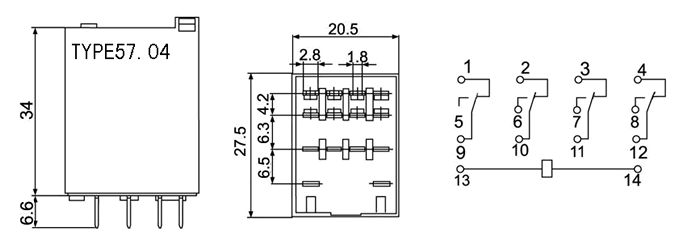

DIMENSION
