APPLICATION

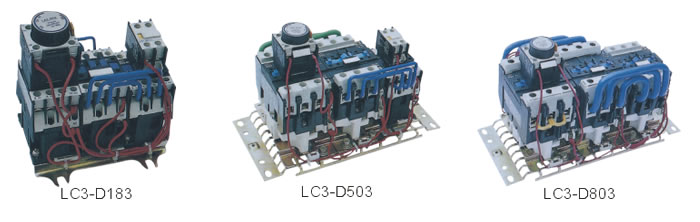

LC3-D series star-delta reduced voltage starter is suitable for starting motor in the circuit of AC 50/60Hz,voltage up to 660V and current up to 95A It is provided with a timer for automatic changeover of star delta to reduce the voltage and current of motor starting.

SPECIFICATION

Type	Rated operating current (A)	3-phase motor capacity (KW)
	AC3	AC3 Loaded
		220V	380V	415V	440V
LC3-D09-3	9	4	7.5	7.5	7.5
LC3-D12-3	12	5.5	11	11	11
LC3-183	17	11	18.5	22	22
LC3-253	25	11	18.5	22	22
LC3-323	32	15	15	25	25
LC3-403	40	18.5	37	37	37
LC3-503	50	25	55	59	59
LC3-803	80	37	75	75	75
LC3-953	95	45	80	80	80

WIRING DIAGRAM
