SPECIFICATION

TYPE		JQX-55F
DIMESIONS(mm)		29.6x21.7x17.1
CONTACT FORM		1Z,1H
CONTACT CAPACITY		30A/250VAC  125AC
CONTACT RESISTANCE		≤50mΩ
INSULATION TESISTANCE		≥100mΩ
DIELECTRIC STRENGTH	BETWEEN OPEN CONTACTS	1000VAC
	BETWIN COIL&CONTACT	1500VAC
COIL VOLTAGE	DC	6 to 48V
	AC	----
COIL POWER	DC	≤0.9W
	AC	----
PICK-UP		80% max
DROP-OUT		AC 30% mix  DC 15% mix
LIFE	ELECTRICAL	105 times
	MECHANICAL	107 times
OPERATING TEMPERATURE		-40℃ to +55℃
WEIGHT		≤22g
MOUNTING FORM		Screw Mounting

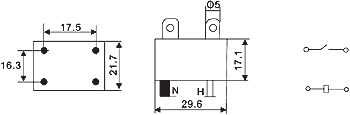

DIMENSION
