SPECIFICATION

CLASSIFCATION		TIMER
MODEL		SUL181h
CONTACT CAPACITY		AC220V 16A
FULL TIMING RANGE		24h
CONTACT RESISTANGE		≤50mΩ
INSULATION RESISTANCE		≥100mΩ
COIL VOLTAGE		220V AC
LIFE	ELECTRICAL	107times
	MECHANICAL	105times
OPERATING TEMPERATURE		-40℃～＋55℃
STO NAGE BATTERY		Without Battery
SET UP TIMES		30 m/per times 48 times

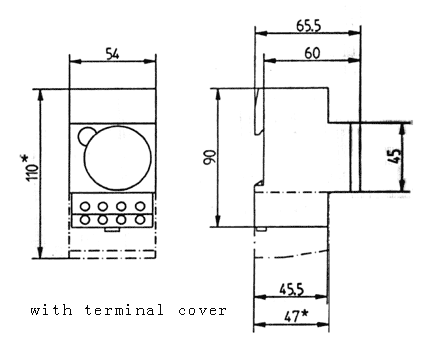

DIMENSIONS
