MINIATURE ELECTROMAGNETIC RELAY JZC-22F |
|
| www.noveltyinfo.com |
MINIATURE ELECTROMAGNETIC RELAY JZC-22F |
|
 PRINT  CLOSE |
|
|
SPECIFICATION
| TYPE |
JZC-22F |
| DIMESIONS(mm) |
19.3x16.8x21 |
| CONTACT FORM |
1Z,1H |
| CONTACT CAPACITY |
5A 7A 12A 15A/125VAC 28VDC |
| CONTACT RESISTANCE |
≤50mΩ |
| INSULATION TESISTANCE |
≥100mΩ |
| DIELECTRIC STRENGTH |
BETWEEN OPEN CONTACTS |
500VAC |
| BETWIN COIL&CONTACT |
1500VAC |
| COIL VOLTAGE |
DC |
3 to 48V |
| AC |
---- |
| COIL POWER |
DC |
≤0.45W |
| AC |
---- |
| PICK-UP |
80% max |
| DROP-OUT |
DC 15% mix |
LIFE
|
ELECTRICAL |
105 times |
| MECHANICAL |
107 times |
| OPERATING TEMPERATURE |
-25℃ to +40℃ |
| WEIGHT |
<
PRODUCTS-MINIATURE ELECTROMAGNETIC RELAY JZC-22F
| www.noveltyinfo.com |
MINIATURE ELECTROMAGNETIC RELAY JZC-22F |
|
| PRINT CLOSE |
|
|
SPECIFICATION
| TYPE |
JZC-22F |
| DIMESIONS(mm) |
19.3x16.8x21 |
| CONTACT FORM |
1Z,1H |
| CONTACT CAPACITY |
5A 7A 12A 15A/125VAC 28VDC |
| CONTACT RESISTANCE |
≤50mΩ |
| INSULATION TESISTANCE |
≥100mΩ |
| DIELECTRIC STRENGTH |
BETWEEN OPEN CONTACTS |
500VAC |
| BETWIN COIL&CONTACT |
1500VAC |
| COIL VOLTAGE |
DC |
3 to 48V |
| AC |
---- |
| COIL POWER |
DC |
≤0.45W |
| AC |
---- |
| PICK-UP |
80% max |
| DROP-OUT |
DC 15% mix |
LIFE
|
ELECTRICAL |
105 times |
| MECHANICAL |
107 times |
| OPERATING TEMPERATURE |
-25℃ to +40℃ |
| WEIGHT |
≤13g |
| MOUNTING FORM |
Printed-Circuit board |

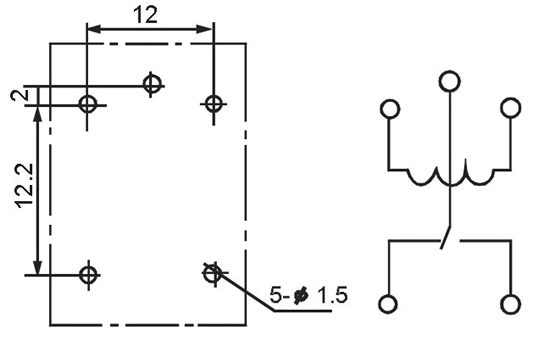

DIMENSION
|
| Copyright© NOVELTY ELECTRICALS E-mail: noveltyinfo@gmail.com OR nept@usa.com |
|
|
| | |
