SPECIFICATION

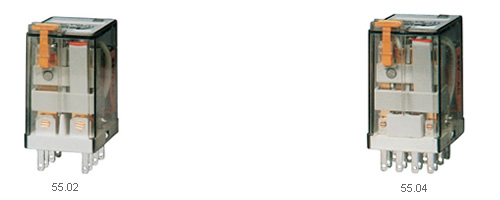

TYPE		55.02	55.04
DIMESIONS(mm)		21X27.5X34	21X27.5X34
CONTACT FORM		2Z	4Z
CONTACT CAPACITY		10A 250VAC 10A 30VDC
CONTACT RESISTANCE		≤50mΩ
INSULATION TESISTANCE		≥500mΩ
DIELECTRIC STRENGTH	BETWEEN OPEN CONTACTS	1000VAC
	BETWIN COIL&CONTACT	1500VAC
COIL VOLTAGE	DC	6 to 220V
	AC	6 to 380V
COIL POWER	DC	≤2.5W
	AC	≤4.0VA
PICK-UP		80% max
DROP-OUT		AC 30% mix DC 15% mix
LIFE	ELECTRICAL	105 times
	MECHANICAL	107 times
OPERATING TEMPERATURE		-40℃ to +60℃
WEIGHT		≤35g
FITTED SOCKET		94.3	94.4
MOUNTING FORM		PCB, Outlet

DIMENSION

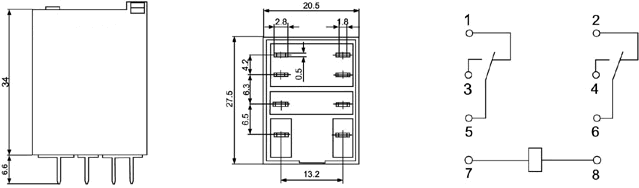

TYPE 55.02

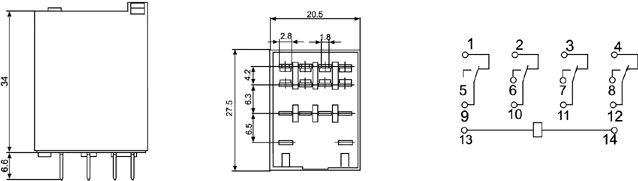

TYPE 55.04
