SPECIFICATION

TYPE		737
DIMESIONS(mm)		37x34x47.3
CONTACT FORM		2Z
CONTACT CAPACITY		10A/220VAC 28VDC
CONTACT RESISTANCE		≤50mΩ
INSULATION TESISTANCE		≥500mΩ
DIELECTRIC STRENGTH	BETWEEN OPEN CONTACTS	1000VAC
	BETWIN COIL&CONTACT	1500VAC
COIL VOLTAGE	DC	6 to 110V
	AC	6 to 220V
COIL POWER	DC	≤2.0W
	AC	≤3.5VA
PICK-UP		80% max
DROP-OUT		AC 30% mix DC 15% mix
LIFE	ELECTRICAL	105 times
	MECHANICAL	107 times
OPERATING TEMPERATURE		-40℃ to +55℃
WEIGHT		≤75g

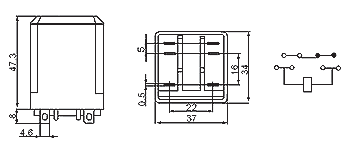

DIMENSION
