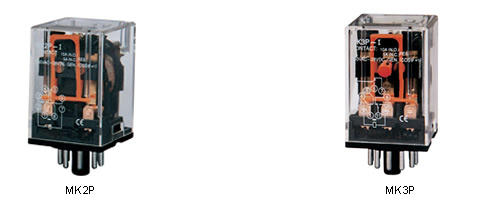

SPECIFICATION

TYPE		MK2P	MK3P
DIMESIONS(mm)		34X34X50.5	34X34X50.5
CONTACT FORM		2P	3P
CONTACT CAPACITY		10A 220VAC 10A 28VDC	10A 220VAC 10A 28VDC
CONTACT RESISTANCE		≤50mΩ
INSULATION TESISTANCE		≥500mΩ
DIELECTRIC STRENGTH	BETWEEN OPEN CONTACTS	1000VAC
	BETWIN COIL&CONTACT	1500VAC
COIL VOLTAGE	DC	6 to 110V
	AC	6 to 220V
COIL POWER	DC	≤2W
	AC	≤3.5VA
PICK-UP		80% max
DROP-OUT		AC 30% mix DC 15% mix
LIFE	ELECTRICAL	105 times
	MECHANICAL	107 times
OPERATING TEMPERATURE		-40℃ to +55℃
WEIGHT		≤78g
FITTED SOCKET		PF083A PF083A-E US-08	PF113A PF113A-E US-11
MOUNTING FORM		Outlet
REMARKS		with lamp:-N, with bottom:-S

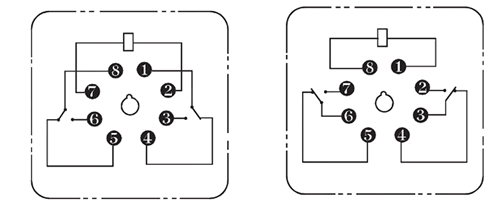

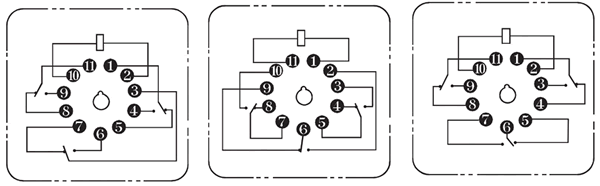

CIRCUIT DIAGRAM

MK2P

MK3P
