SPECIFICATION

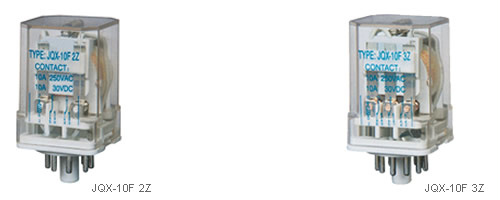

TYPE		JQX-10F 2Z(JTX-2C)	JQX-10F 3Z(JTX-3C)
DIMESIONS(mm)		34.7X34.7X50	34.7X34.7X50
CONTACT FORM		2Z/2C	3Z/3C
CONTACT CAPACITY		10A 220VAC 10A 28VDC	10A 220VAC 10A 28VDC
CONTACT RESISTANCE		≤50mΩ
INSULATION TESISTANCE		≥500mΩ
DIELECTRIC STRENGTH	BETWEEN OPEN CONTACTS	1000VAC
	BETWIN COIL&CONTACT	1500VAC
COIL VOLTAGE	DC	6 to 110V
	AC	6 to 220V
COIL POWER	DC	≤2W
	AC	≤3.5VA
PICK-UP		80% max
DROP-OUT		AC 30% mix DC 15% mix
LIFE	ELECTRICAL	105 times
	MECHANICAL	107 times
OPERATING TEMPERATURE		-40℃ to +65℃
WEIGHT		≤68g
FITTED SOCKET		PF083A PF083A-E PT-08	PF113A PF113A-E PL-11
MOUNTING FORM		Outlet

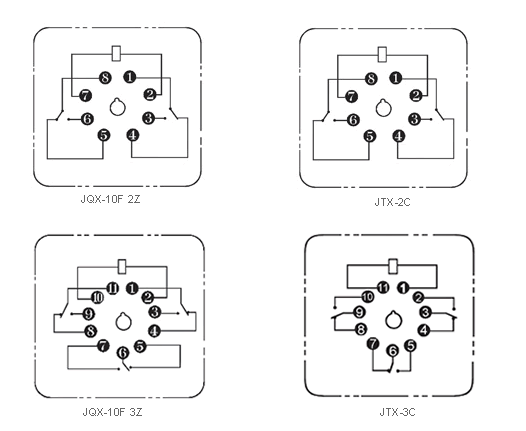

CIRCUIT DIAGRAM
