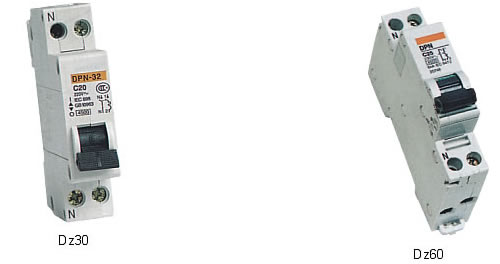

The product is applicable to protect line conductor and overload, and short circuit of small sealed motors. It is mainly for protection of circuits with AC 220V and 50/60HZ, and for unfrequented conversion under normal conditions as well its only one pole volume and is used as a leakage breaker by assembling with leakage. It is produced as per En60898, IEC947-2 standards.
TECHNICAL DATA
1. current ranting: 1,2,3,4,6,10,16,20,25,32A at 30? 2. Voltage ranting: 220/240V AC 3. Breaking capacity to EN 60898:4500 4. Number of operating cycles (O-C): 20000 5. Tripping characteristics: B curve: the magnetic release operate between 3 and 5 In C curve: the magnetic release operate between 3 and 5In
