APPLICATION

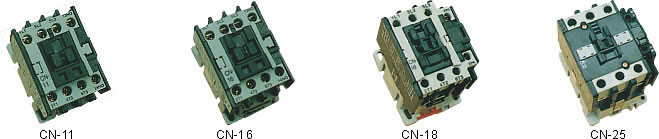

CN series AC contactor is suitable for using in the circuits up to rated voltage 500V AC 50HZ or 60HZ for making and breaking remote circuits and rated operating current 11,16,18,25 and 35A at rated operating voltage 380V under utilization category AC-3. It can be combined with suitable thermal overload relays to form electro-magnetic starters in order to protect overload circuit, also combined with auxiliary contact block of building block principle and mechanical interlocking accessories etc.

SPECIFICATION

Type	Rated insulated voltage Ui V	Rated heating current Ith A	Rated operating voltage Ue V	Rated operating current & operating frequency				AC-3 Pe KW	Combining voltage range(V)	Releasing voltage range(V)
				AC-3		AC-4
				Ie A	Operating frequency 1/h	Ie A	Operating frequency 1/h
CN-11	660	25	200-220	12	1200	3.3	300	3	0.80-1.1Us cold	0.20-0.75Us cold
			380-440	11				4
CN-16		25	200-220	16	1200	4.8	300	4
			380-440	16				5.5
CN-18		35	200-220	23	1200	8.5	300	5.5
			380-440	18				9
CN-25		50	200-220	30	600	11	300	7.5
			380-440	25				15
CN-35		50	200-220	42	600	16	300	11
			380-440	35				18.5
